Overview

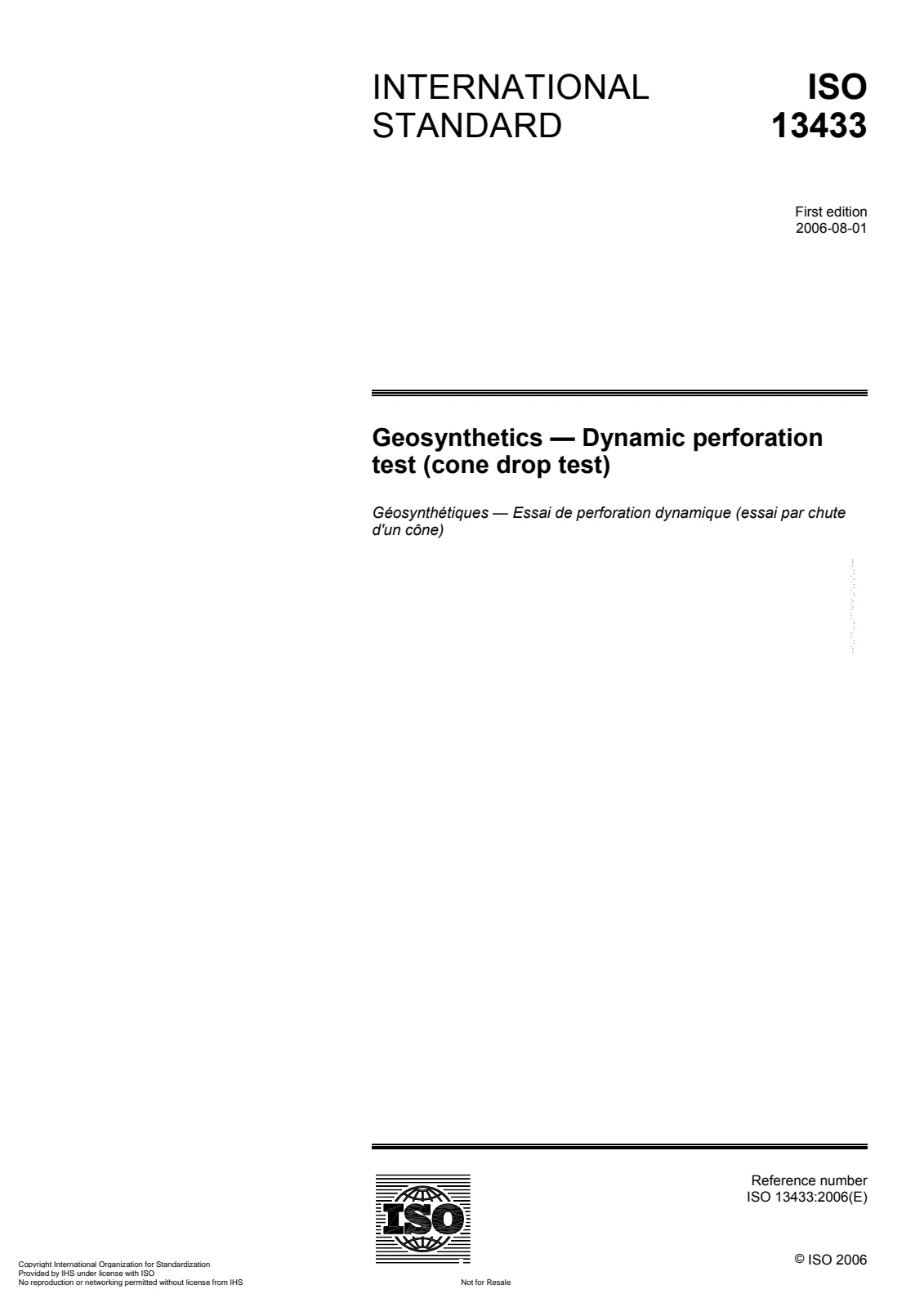

ISO 13433:2006 defines a standardized method for evaluating the dynamic puncture resistance of geosynthetics using a cone drop test. This internationally recognized standard specifies the procedure whereby a steel cone is dropped from a fixed height onto a geosynthetic sample, and the degree of penetration is measured. This test simulates the impact of sharp stones striking the geosynthetic surface, providing critical insights into the material's durability and performance under dynamic loading. While applicable to most geosynthetics, the test's suitability should be evaluated cautiously for certain product types due to differences in material behavior.
Key Topics
- Purpose: Assess resistance of geosynthetics to dynamic perforation by steel cones.
- Test Principle: A polished stainless-steel cone (mass 1,000 ± 5 g, apex angle 45°) is dropped freely from 500 mm onto a horizontally fixed geosynthetic specimen.
- Sample Preparation: Samples are conditioned according to ISO 554 at 20 ± 2 °C and 65 ± 5% relative humidity before testing to ensure consistent results.
- Fixation System: Samples are clamped between two steel rings (150 ± 0.5 mm internal diameter) to prevent slippage or tearing during impact.
- Measurement: Penetration size is determined immediately after impact by inserting a graduated measuring cone into the hole and recording the maximum diameter.
- Number of Specimens: Five specimens are tested per sample; if anisotropy exists, tests must be performed on each side separately.
- Reporting: Test reports must include sample identification, conditioning atmosphere, average hole diameter, variation coefficient, and any specific observations such as material anisotropy or unusual cone rebound effects.
Applications
- Geosynthetic Product Quality Assurance: Ensures that materials like geomembranes, geotextiles, and geonets can withstand mechanical impacts resembling real-world sharp stone falls.
- Construction and Civil Engineering: Valuable for projects requiring durable geosynthetics in applications such as road bases, embankments, retaining walls, and landfill liners.
- Material Development and Research: Enables manufacturers and researchers to optimize formulations and processes to improve puncture resistance.
- Performance Benchmarking: Facilitates comparison between different geosynthetics under uniform testing conditions.
- Risk Assessment: Assists engineers in selecting geosynthetic products with adequate resistance to penetration hazards in specific environments.
Related Standards
- ISO 9862 – Geosynthetics – Sampling and preparation of specimens for testing
- ISO 10320 – Geotextiles and related products – Site identification
- ISO 554 – Standard atmospheres for conditioning and testing
- Additional Geosynthetics Performance Tests: Complementary standards for mechanical, hydraulic, and durability properties assessment are important for comprehensive quality evaluation.
ISO 13433:2006 is essential for professionals involved in the specification, testing, and application of geosynthetic materials, providing a reliable method to determine resistance to dynamic puncture - a critical factor affecting long-term performance and safety in civil engineering projects.
