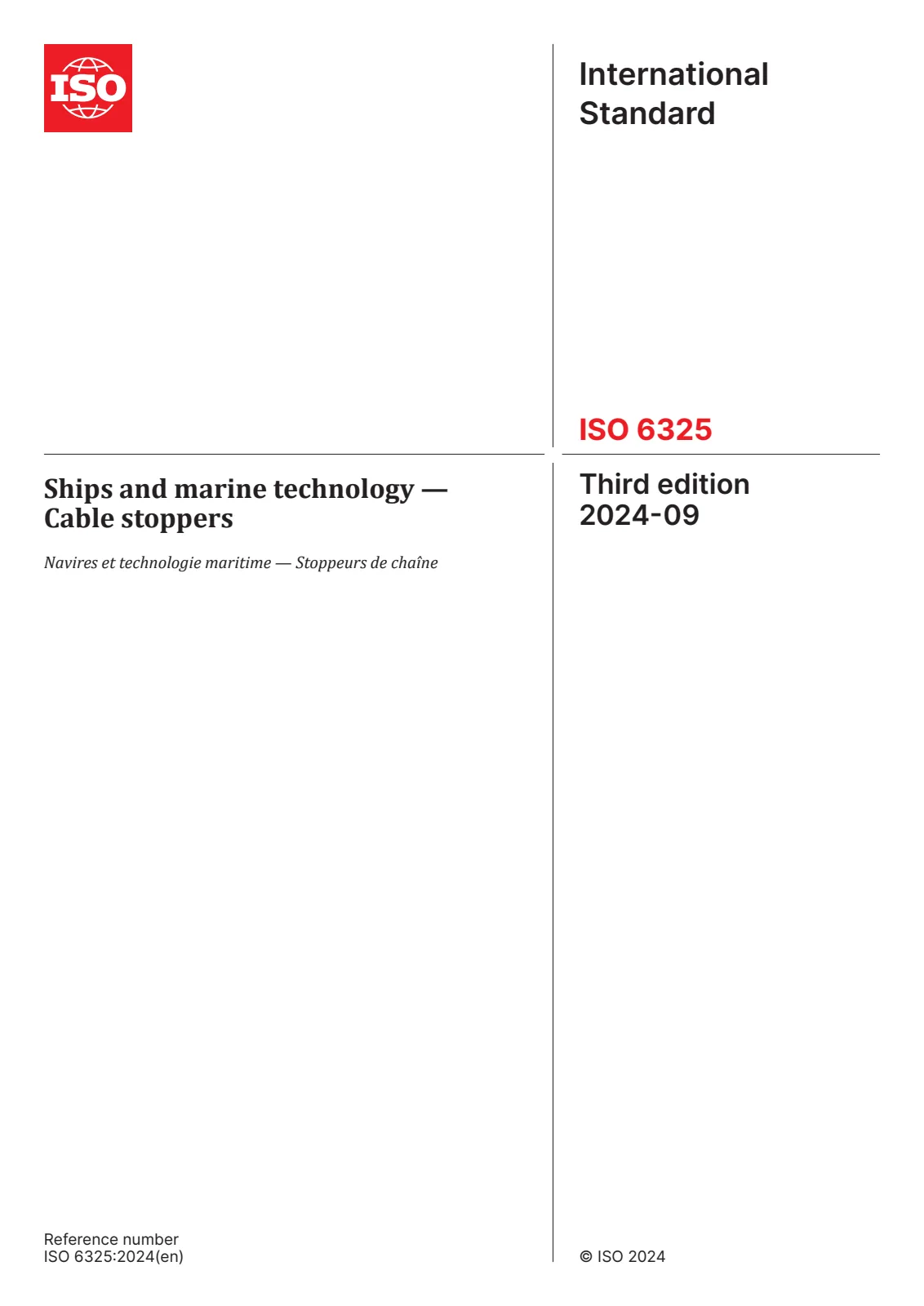

ISO 6325:2024 PDF

Ships and marine technology — Cable stoppers

Название (английский):

ISO 6325:2024

Ships and marine technology — Cable stoppers

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 9
Дата публикации:: 17 сентября 2024 г.
Издание:: ISO IS 6325 edition 3 version 1
ICS:: 47.020.50

Тип поставки:

Full version135 €Read online 24h10 €Read online 72h15 €

Язык документа:

ruen

Срок поставки:2 раб. дн. (перевод)

Цена:135 €

Описание (английский):

This document specifies requirements for the types, sizes, design, construction, strength, safety, function, operation, installation and acceptance tests of cable stoppers. This document is applicable to the design, manufacturing and acceptance tests of cable stoppers for use with marine windlasses and anchor capstans as defined in ISO 4568.

Технические детали

Технический комитет: ISO/TC 8/SC 4 - Outfitting and deck machinery
SKU: ISO 6325:2024

Abstract

Overview

ISO 6325:2024 - Ships and marine technology - Cable stoppers specifies requirements for the design, construction, testing and installation of cable stoppers used with marine windlasses and anchor capstans (as defined in ISO 4568). The standard covers types and sizes, strength and safety criteria, functional and operational requirements, acceptance tests, designation and marking - providing manufacturers, shipbuilders and operators with a uniform basis for safe and reliable chain-cable stopping devices.

Key topics and technical requirements

Scope & applicability: Applies to cable stoppers for use with windlasses and anchor capstans; nominal sizes correspond to anchor chain sizes in ISO 1704.
Types: Track-type (T), roller-type (R), combined track & roller (C), and combined with adjust block (D).
Classes & strength:
- Class A: withstands 80% of nominal breaking load without permanent deformation.
- Class B: withstands 40% of nominal breaking load without permanent deformation.
Materials & design: Environmental and material requirements referenced to ISO 7825:2017; designed stresses shall not exceed material yield stresses. Roller design must allow smooth chain passage and avoid high bending moments (see ISO 1704).
Operational limits:
- Envelope angle of chain ≥ 115°; horizontal sextant angle 0°–25°.
- Manual operation force limits: ≤ 350 N for chain diameters

Overview

Key topics and technical requirements

Scope & applicability: Applies to cable stoppers for use with windlasses and anchor capstans; nominal sizes correspond to anchor chain sizes in ISO 1704.
Types: Track-type (T), roller-type (R), combined track & roller (C), and combined with adjust block (D).
Classes & strength:
- Class A: withstands 80% of nominal breaking load without permanent deformation.
- Class B: withstands 40% of nominal breaking load without permanent deformation.
Materials & design: Environmental and material requirements referenced to ISO 7825:2017; designed stresses shall not exceed material yield stresses. Roller design must allow smooth chain passage and avoid high bending moments (see ISO 1704).
Operational limits:
- Envelope angle of chain ≥ 115°; horizontal sextant angle 0°–25°.
- Manual operation force limits: ≤ 350 N for chain diameters
