EN ISO 4895:2014 PDF

Plastics - Liquid epoxy resins - Determination of tendency to crystallize (ISO 4895:2014)

Название (английский):

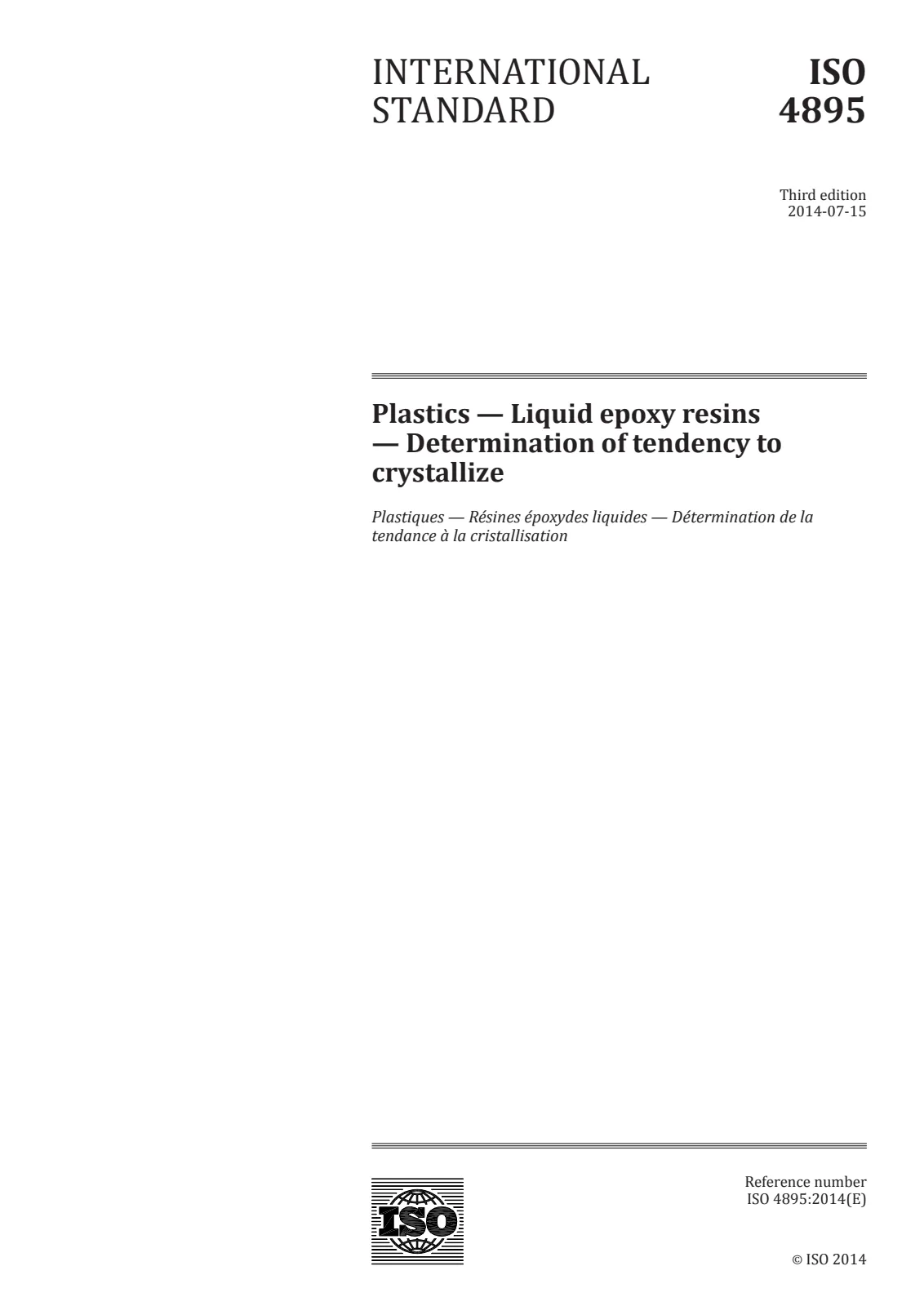

EN ISO 4895:2014

Plastics - Liquid epoxy resins - Determination of tendency to crystallize (ISO 4895:2014)

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 11
Дата публикации:: 16 июля 2014 г.
Издание:: CEN EN 4895 edition 2 version 1
ICS:: 83.080.10

Тип поставки:

Full version165 €Read online 24h10 €Read online 72h15 €

Язык документа:

ruen

Срок поставки:2 раб. дн. (перевод)

Цена:165 €

Описание (английский):

ISO 4895:2014 specifies a method for determining the tendency of liquid epoxy resins to crystallize. The tendency to crystallize is determined by observing, at specified time intervals, changes in fluidity and the onset of crystallization.

Технические детали

Технический комитет: CEN/TC 249 - Plastics
SKU: EN ISO 4895:2014

Abstract

Overview

EN ISO 4895:2014 - Plastics: Liquid epoxy resins - Determination of tendency to crystallize specifies a laboratory method to assess the tendency of liquid epoxy resins to crystallize. The test quantifies how long a resin takes to show reduced fluidity and the onset of crystallization by periodic observation under controlled conditions. Results are reported as the number of days to reach defined stages of solidification.

Key topics and technical requirements

Scope: Determines crystallization tendency by observing changes in fluidity and appearance at specified intervals.
Principle: Mix resin with calcium carbonate and ethanol, condition at low temperature, and monitor fluid movement and solidification.
Reagents:
- Calcium carbonate (per ISO 6353-3:1987, R 53)
- Ethanol (per ISO 6353-2:1983, R 11)
Apparatus: Refrigerator or cold enclosure at (10 ± 2) °C, test tube (~100 ml, 40 mm × 80 mm) with stopper, hard glass rod (~10 mm diameter), oven, analytical balance (0.01 g), and constant temperature room (23 ± 5) °C.
Procedure (summary):
- Weigh 20 g liquid epoxy resin into test tube.
- Dry in oven at (60 ± 2) °C for 16 h.
- Cool to (23 ± 5) °C, add 20 g CaCO3 and 2 g ethanol, mix 2 min.
- Store vertically at (10 ± 2) °C.
- Observe twice daily (example schedule: start 09:00; first observation 17:00; then 09:00 next day, etc.). For each observation warm to 23 ±5 °C, place tube horizontally 1 min and record:
  - a: liquid tip movement L ≥ 10 mm
  - b: L

Overview

Key topics and technical requirements

Scope: Determines crystallization tendency by observing changes in fluidity and appearance at specified intervals.
Principle: Mix resin with calcium carbonate and ethanol, condition at low temperature, and monitor fluid movement and solidification.
Reagents:
- Calcium carbonate (per ISO 6353-3:1987, R 53)
- Ethanol (per ISO 6353-2:1983, R 11)
Apparatus: Refrigerator or cold enclosure at (10 ± 2) °C, test tube (~100 ml, 40 mm × 80 mm) with stopper, hard glass rod (~10 mm diameter), oven, analytical balance (0.01 g), and constant temperature room (23 ± 5) °C.
Procedure (summary):
- Weigh 20 g liquid epoxy resin into test tube.
- Dry in oven at (60 ± 2) °C for 16 h.
- Cool to (23 ± 5) °C, add 20 g CaCO3 and 2 g ethanol, mix 2 min.
- Store vertically at (10 ± 2) °C.
- Observe twice daily (example schedule: start 09:00; first observation 17:00; then 09:00 next day, etc.). For each observation warm to 23 ±5 °C, place tube horizontally 1 min and record:
  - a: liquid tip movement L ≥ 10 mm
  - b: L
