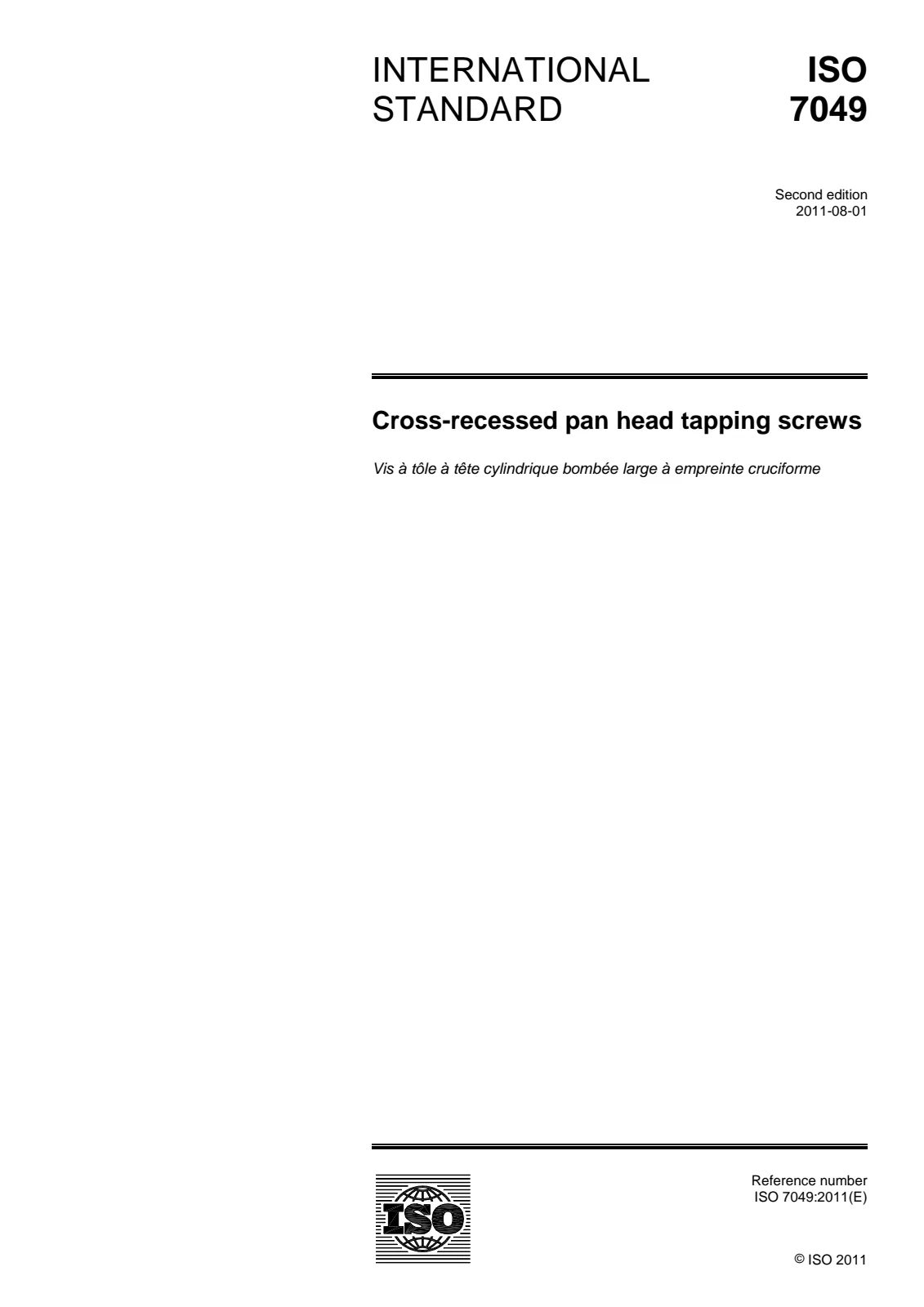

Overview - EN ISO 7049:2011 / Cross‑recessed pan head tapping screws
EN ISO 7049:2011 (identical to ISO 7049:2011) is the CEN-endorsed International Standard that specifies the characteristics of cross‑recessed pan head tapping screws. The standard covers thread sizes from ST 2,2 to ST 9,5 inclusive and defines dimensional, material and marking requirements, preferred lengths, head and recess types, and designation conventions. EN ISO 7049:2011 supersedes earlier editions and was prepared by ISO/TC 2 (Fasteners) in cooperation with CEN/TC 185.
Key topics and technical requirements
- Scope and dimensions: Detailed head, thread and recess dimensions (see Figure 1 and Table 1 in the standard) for ST 2,2 → ST 9,5, including preferred length ranges and maximum/minimum values for key features (pitch, head diameter, head height, recess penetration).
- Head and end types: Defines pan head forms (Types C, F, R) and end styles (e.g., rounded end Type R).
- Cross‑recess types: Specifies cross recess configurations (Types H and Z) and associated dimensions and penetration depths.
- Materials and mechanical properties:
- Steel tapping screws in accordance with ISO 2702 (heat‑treated steel tapping screws).
- Stainless‑steel grades referenced (A2‑20H, A4‑20H, A5‑20H) with mechanical properties per ISO 3506‑4 for tapping screws.
- Finishes and coatings: Electroplating and passivation requirements referenced (ISO 4042, ISO 16048) and non‑electrolytic zinc flake coatings per ISO 10683; additional finishes by agreement.
- Tolerances and product grade: Tolerances per ISO 4759‑1, general fastener requirements per ISO 8992, and acceptance inspection per ISO 3269.
- Designation format: Standardized example format - e.g., “Tapping screw ISO 7049 - ST 3,5 × 16 - St - R - Z”.
Applications and who uses this standard
EN ISO 7049:2011 is used by manufacturers, purchasers, designers and quality engineers working with tapping screws and sheet‑metal assemblies. Typical applications include:
- Sheet‑metal fastening in appliances, electrical enclosures and HVAC assemblies
- Automotive trim and interior components
- Electronics and small equipment assembly where self‑tapping screws are required
- Fastener procurement, inspection and specification for OEMs and distributors
Users rely on the standard to ensure interchangeability, consistent performance and correct designation when specifying cross‑recessed pan head tapping screws.
Related standards (normative references)
Key referenced documents include:
- ISO 225, ISO 1478, ISO 2702, ISO 3269, ISO 3506‑4, ISO 4042, ISO 4757, ISO 4759‑1, ISO 8992, ISO 10683, ISO 16048
For suppliers and engineers specifying tapping screws, citing EN ISO 7049:2011 ensures clarity on dimensions, materials and acceptable finishes - improving compatibility and reducing procurement and assembly issues.
