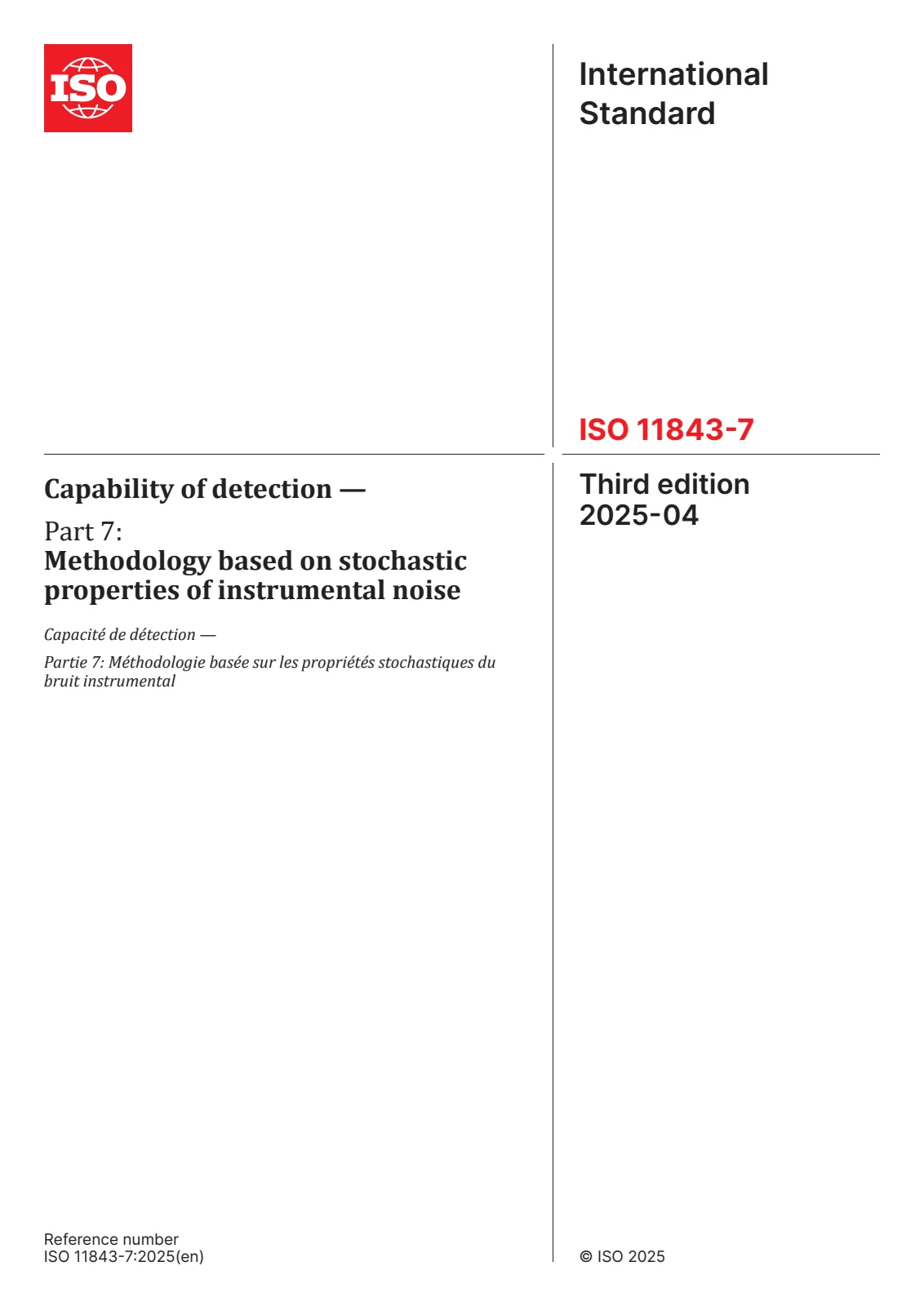

ISO 11843-7:2025 - "Capability of detection - Part 7: Methodology based on stochastic properties of instrumental noise" provides practical statistical methods to determine the minimum detectable value (detection capability) when background instrumental noise is the dominant source of uncertainty. This third edition (revising ISO 11843-7:2018) guides users on how to extract stochastic noise properties, estimate the standard deviation (SD) or coefficient of variation (CV) of the response variable, and compute detection limits directly from those estimates. The methods are compatible with the ISO 11843 framework (notably Parts 1, 2 and 5).
Key topics and technical requirements
- Scope and applicability: Applicable when baseline/background noise predominates over other error sources (instrumental analysis stage only). Feasible for UV–visible absorption, atomic absorption/fluorescence, luminescence spectrometry, liquid chromatography (LC) and gas chromatography (GC).
- Core workflow:
- Extract stochastic properties of background noise.
- Use noise model to estimate SD or CV of the response variable (intensity, peak height or area).
- Calculate the minimum detectable value using the SD/CV and the chosen calibration relation.
- Noise modelling and estimation methods:
- Fourier transform / power spectrum analysis for frequency-domain characterization.
- Auto-covariance function to capture temporal correlation structure.
- Difference method for robust SD estimation from time-series noise.
- Treatment of common stochastic models (e.g., AR processes) and derivation of precision for intensity differences and integrated areas.
- Precision profile and calibration: Shows how SD or CV varies with net state variable. For linear calibration, response SD transforms linearly to measurand SD; nonlinear cases are handled via ISO 11843‑5 procedures.
- Normative references: Aligns with ISO 11843-1/2/5 and statistical vocabulary/precision standards (ISO 3534 series, ISO 5725-1).
Practical applications and target users
- Who should use it:
- Analytical chemists and laboratory managers establishing detection limits.
- Instrument manufacturers validating instrument detection capability.
- Metrology and accreditation bodies assessing measurement performance.
- QC/QA personnel in environmental, pharmaceutical and food testing labs.
- Real-world benefits:
- Enables mathematically grounded detection limits without extensive replicate sampling, saving time and resources.
- Provides reproducible, auditable procedures for regulatory reporting and method validation.
- Supports instrument selection, filter design, and signal-processing choices by quantifying noise impacts.
Related standards
Keywords: ISO 11843-7:2025, capability of detection, minimum detectable value, instrumental noise, background noise, SD, CV, precision profile, Fourier transform, autocovariance, chromatography, spectrometry.
