Overview

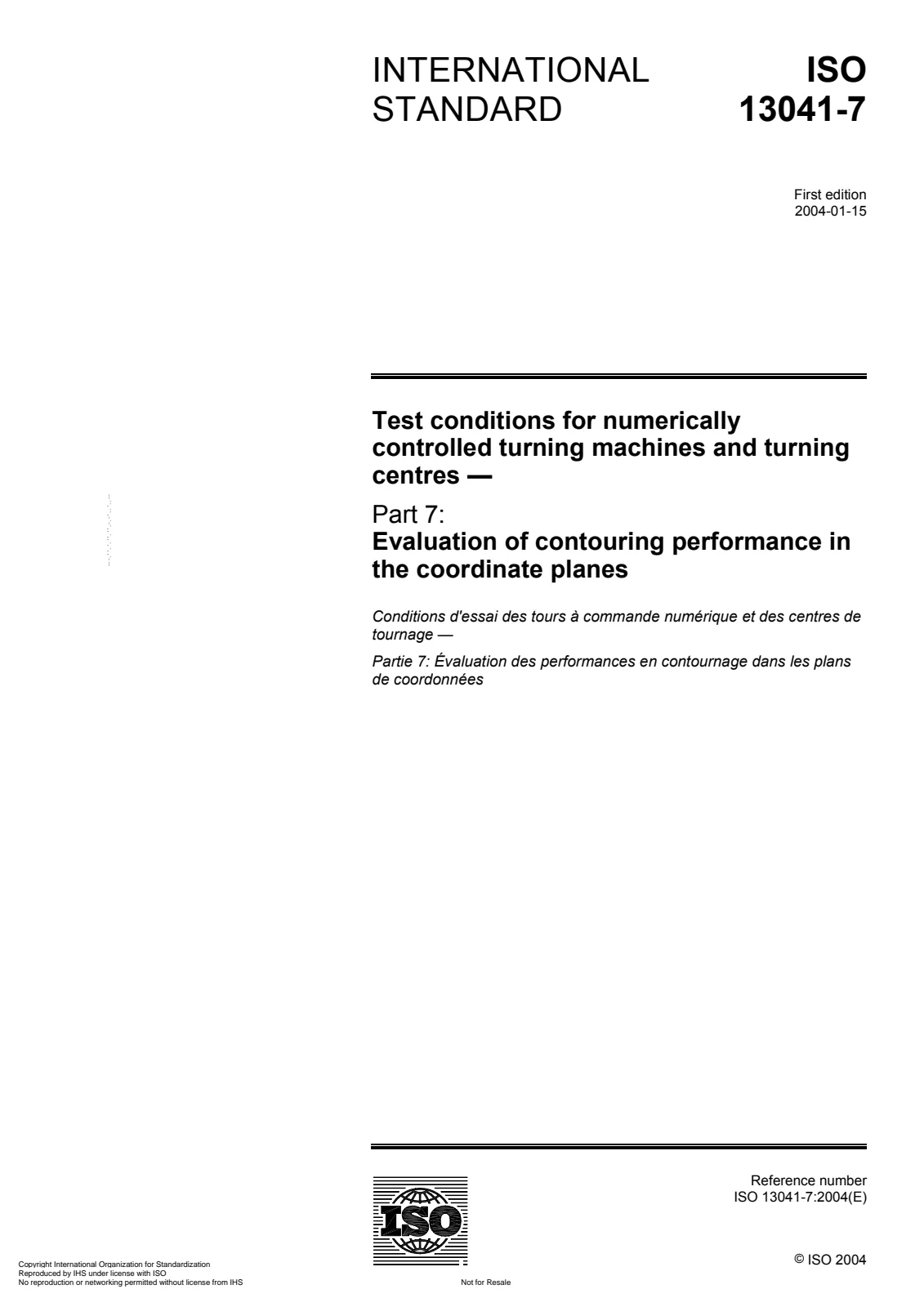

ISO 13041-7:2004 is an international standard developed by the International Organization for Standardization (ISO) that specifies test conditions to evaluate the contouring performance of numerically controlled turning machines and turning centres. This part of the ISO 13041 series focuses on assessing the accuracy of circular interpolation movements in the coordinate planes of the machine tool, providing a standardized method to verify machine performance through circular tests.
This standard is essential for manufacturers, quality control engineers, and users of CNC turning machines who need to ensure precision in contouring operations, particularly circular movements. It complements related standards such as ISO 230-4:1996, which provides methods for circularity testing of machine tools.
Key Topics
-
Contouring Performance Evaluation
ISO 13041-7:2004 prescribes a method for measuring the contouring accuracy of turning centres using circular test movements. The evaluation focuses on two primary deviations:
- Radial deviation (F) – the maximum variation of the toolpath radius during the circular movement.
- Circular deviation (G) – the overall circularity error of the toolpath compared to the ideal circle.
-
Test Methodology
The tests are conducted by moving the tool through circular trajectories in one position per coordinate plane (e.g., XZ, XY, YZ). The test is performed at a single feedrate, and to ensure accuracy and repeatability, the circular movement is repeated in the opposite contouring direction.
-
Measurement Techniques
Measurement devices recommended include:
- One-dimensional rotary sensors mounted on a test mandrel.
- Two-dimensional sensors used with circular templates.
- Telescopic ball bars for indirect length measurement.
These instruments provide the precision required to detect deviations in the range representative of normal machine tool accuracy.
-
Test Setup and Conditions
The standard advises on proper thermal stabilization of the machine before testing, positioning of non-tested axes in mid-travel to minimize deformation effects, and clear documentation of test parameters such as nominal circle diameter, feedrate, and measurement device details.
-
Test Reporting
Results must include detailed records on machine identification, test conditions, measurement instruments, and graphical representations of deviation data, facilitating transparent assessment and future comparison.
Applications
-
Machine Acceptance Testing
ISO 13041-7:2004 provides a reliable framework for buyers and suppliers of CNC turning machines to agree upon test parameters and acceptance criteria, ensuring that the delivered equipment meets contouring precision requirements.
-
Periodic Maintenance and Performance Monitoring
Regular application of these circular interpolation tests helps monitor wear, alignment, or control system degradation over the machine’s life, enabling timely maintenance decisions and minimizing downtime.
-
Quality Assurance in Manufacturing
Accurate contouring directly affects part quality in industries such as automotive, aerospace, and precision engineering. Using this standard supports continuous process improvement by confirming machine capability to produce circular features within tolerance.
-
Research and Development
Machine manufacturers employ this standard to benchmark new designs and control algorithms, validating improvements in motion control and mechanical rigour.
Related Standards
-
ISO 230-4:1996 – Code of test for machine tools, Part 4: Circular tests for numerically controlled machine tools. ISO 13041-7 relies on measurement methods and definitions established in this document.
-
ISO 13041 Series –
- Part 1: Geometric tests for horizontal spindle machines.
- Part 5: Accuracy of feed, speed, and interpolations (includes circular interpolation test K4).
- Other parts cover geometric, positioning, machining accuracy, and thermal effects of CNC lathes.
-
ISO 230-1:1996 – General provisions for geometric accuracy testing on machine tools, important for setup and instrumentation guidance.
-
ISO 1708:1989 and ISO 6155:1998 – Standards covering acceptance conditions and precision control for general purpose turning machines and automatics, harmonizing with ISO 13041 series.
