Overview

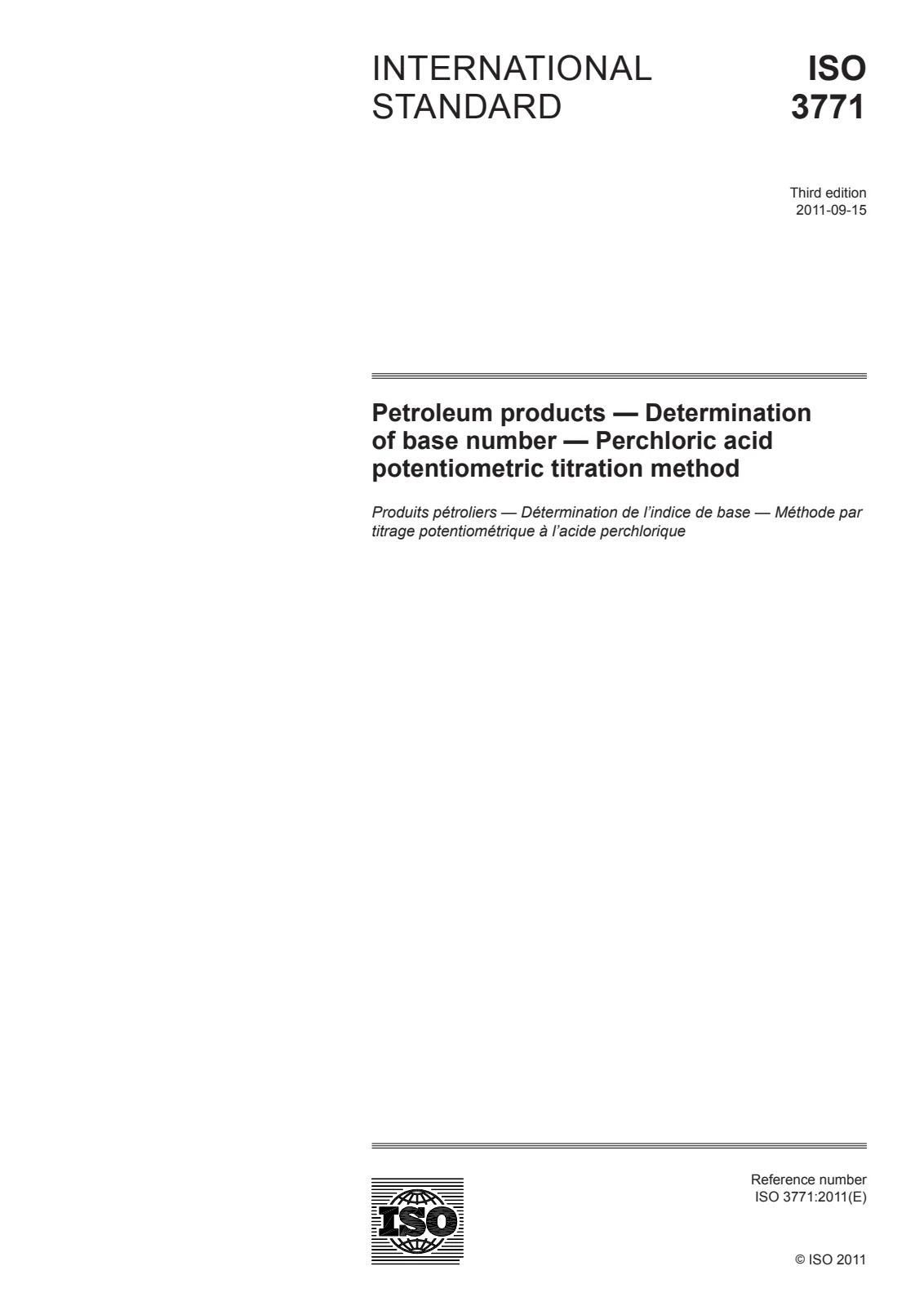

ISO 3771:2011 - Petroleum products - Determination of base number - Perchloric acid potentiometric titration method - specifies a laboratory method to determine the total basic constituents (base number, BN) in petroleum products by potentiometric titration with perchloric acid in glacial acetic acid. The base number is reported as milligrams of potassium hydroxide (mg KOH) per gram of sample and represents the quantity of perchloric acid required to reach the potentiometric endpoint.
Key topics and technical requirements
- Scope and analytes: Covers organic/inorganic bases, amino compounds, soaps (salts of weak acids), basic salts of polyacid bases and heavy-metal salts.
- Established BN ranges for precision:
- Unused oils: 3–45 mg KOH/g
- Additive concentrates: 5–45 mg KOH/g
- Used oils: 3–30 mg KOH/g
- Principle: Sample dissolved in an essentially anhydrous solvent and titrated with 0.1 mol/L perchloric acid in glacial acetic acid; endpoint located at last inflection of potentiometric titration curve.
- Titration solvent: mix of toluene : glacial acetic acid : acetone = 6 : 3 : 1 (volumes).
- Reagents and standardization:
- Use analytical-grade reagents and Grade 3 water (ISO 3696).
- Standardize perchloric acid solution using Tris (tris(hydroxymethyl)-aminomethane) or potassium hydrogen phthalate (KHP); calculation procedures provided.
- Apparatus:
- Microprocessor-controlled potentiometric titrimeter (automatic burette; dynamic titration recommended).
- Combination pH-Ag/AgCl glass electrode designed for non-aqueous media (low membrane resistance, Ag/AgCl reference, flexible diaphragm).
- Stirrer, titration beaker, balance (resolution depends on expected BN: 0.001 g up to BN 30; 0.0001 g for >30).
- Sample mass guidance (approximate):
- BN 3–15 → ~2.00 g
- BN >15–30 → ~1.00 g
- BN >30–45 → ~0.25 g
- Endpoint and calculation: Endpoint is midpoint of the curve inflection (automatic detection supported). BN calculated as mg KOH/g using titrant volume, concentration and sample mass.
- Safety note: Perchloric acid handling precautions and hazard warnings are included.
Applications and users
- Quality control and routine laboratory analysis in:
- Oil and lubricant manufacturers (formulation, additive concentrates)
- Petrochemical laboratories and testing service providers
- Maintenance labs monitoring used oils and engine lubricants
- Regulatory and compliance testing where BN is a key indicator of detergent/alkaline reserve
- Useful for assessing additive depletion, contamination with acidic species, and total basicity of petroleum products.
Related standards
- ISO 3696 - Water for analytical laboratory use - referenced for water quality used in analysis.
Keywords: ISO 3771, base number, BN, perchloric acid potentiometric titration, petroleum products, oil analysis, lubricant testing, potentiometric titrimeter.
