Overview

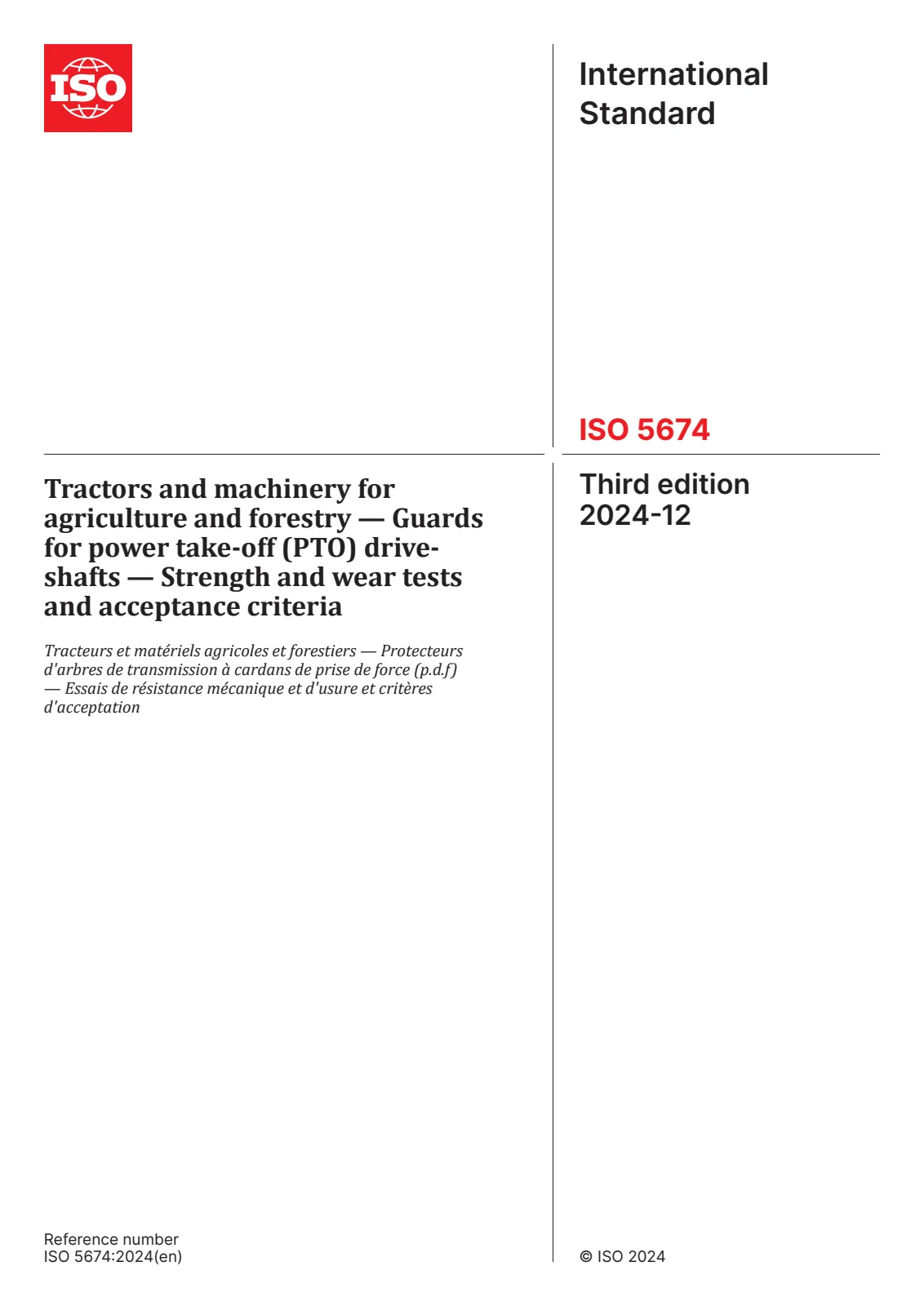

EN ISO 5674:2025 - titled "Tractors and machinery for agriculture and forestry - Guards for power take-off (PTO) drive-shafts - Strength and wear tests and acceptance criteria (ISO 5674:2024)" - defines test methods and acceptance criteria to assess the strength and wear resistance of guards for PTO drive-shafts used on tractors and agricultural/forestry machinery. The standard is intended to be used in combination with ISO 5673‑1:2005 and applies to guards and their restraining means (excluding guards designed as steps and guards manufactured before publication).
Key topics and technical requirements
The standard organizes practical test procedures and requirements including:
- General test conditions and test equipment specifications (accuracy, environmental media such as potable/salt water, test dust).
- Wear tests and bearing corrosion tests to evaluate long-term durability and corrosion resistance.
- A suite of strength tests, for example:
- Dynamic radial loading at defined temperature limits
- Component tests on joints and tubes
- Dynamic swivel tests
- Static and dynamic axial loading tests at ambient and sub-zero temperatures
- Impact tests at sub-zero temperatures
- Restraining means tests for conventional and novel attachment systems.
- Final acceptance criteria and required content for a standardized test report.
- Normative and informative annexes (test schedules for cone/tube guards, UV tests for plastic guards, example test reports, tests for novel guard designs).
Keywords covered: PTO drive-shaft guards, strength and wear tests, acceptance criteria, tractor PTO guards testing.
Applications and who uses it
EN ISO 5674:2025 is used by:
- Manufacturers of PTO shaft guards and agricultural/forestry machinery to design and validate guards for safety and durability.
- Test laboratories and product certification bodies performing standardized strength, wear and corrosion testing.
- Regulatory and compliance teams seeking conformity evidence for machinery safety standards and to support presumption of conformity with EU machinery requirements (Directive 2006/42/EC) where applicable.
- R&D and design engineers optimizing materials, plastics (including UV exposure considerations), and restraining systems for PTO guards.
Practical benefits include improved guard reliability, consistent test reporting, and clearer pathways to market compliance across CEN/ISO member countries.
Related standards
- ISO 5673‑1:2005 (intended complementary document for PTO guard specifications)
- Directive 2006/42/EC (EU Machinery Directive) - this EN version supports conformity assessment where cited.
For manufacturers and testing labs working on PTO shaft guards, referencing EN ISO 5674:2025 ensures consistent, recognized test methods for strength, wear and acceptance criteria across Europe and internationally.
