Overview

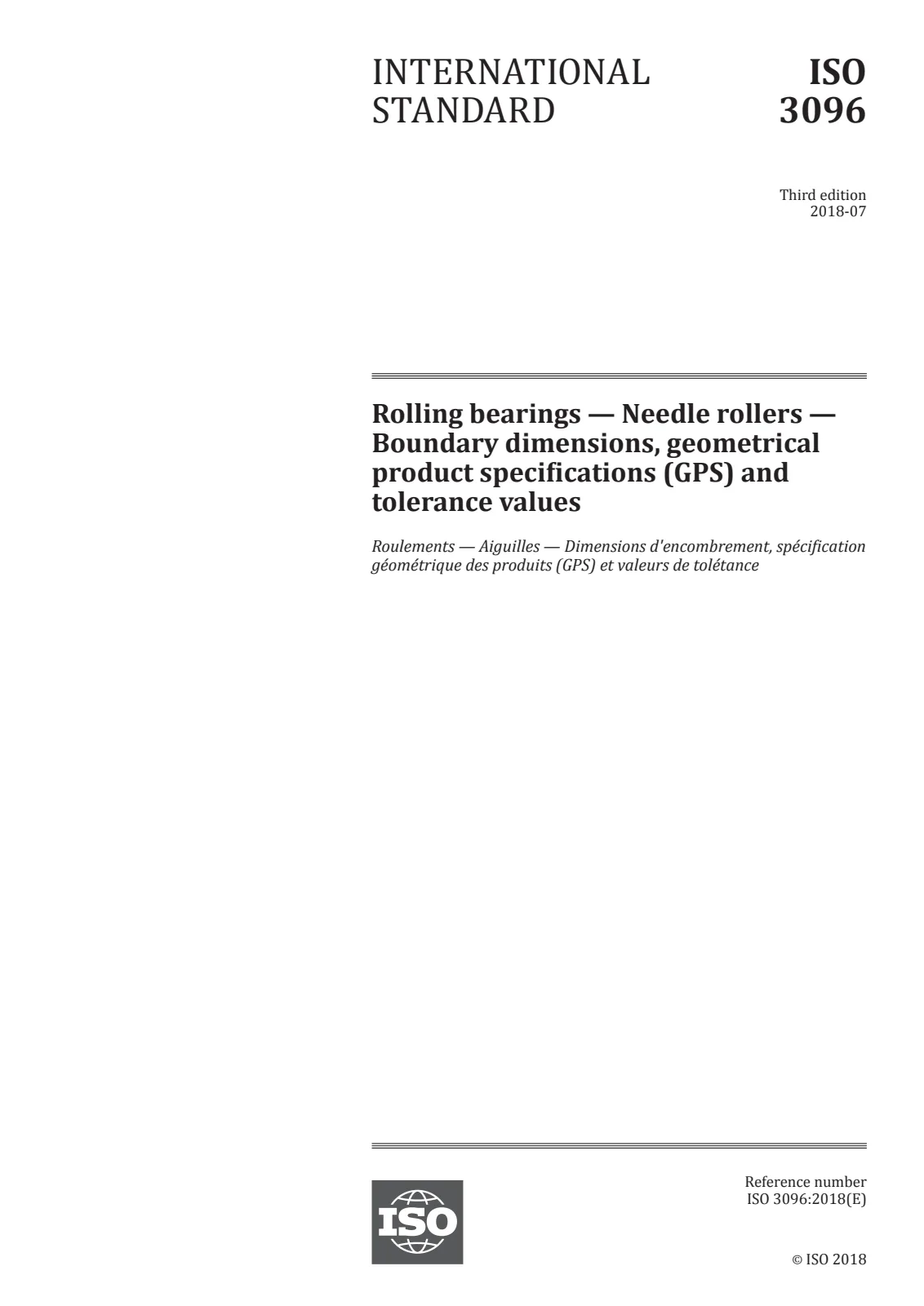

ISO 3096:2018 - Rolling bearings: Needle rollers defines the boundary dimensions, geometrical product specifications (GPS) and tolerance values for finished steel needle rollers used as rolling elements. This third edition updates dimensional rules to the ISO GPS system and clarifies how to specify, measure and accept needle-roller geometry for design, production and inspection.
Key topics and technical requirements
- Scope and intent: Specifies nominal boundary dimensions and geometrical characteristics for finished steel needle rollers (diameter, length, end profile, chamfers, roundness and surface roughness) and the related tolerance system.
- Geometrical Product Specification (GPS): Applies ISO GPS principles (ISO 8015), geometric tolerancing (ISO 1101) and linear size rules (ISO 14405‑1). Default decision rules (ISO 14253‑1) and guidance on measurement uncertainty (ISO 14253‑2) are referenced.
- Size concepts and symbols: Uses mid‑range two‑point size (Dwmp), variation in gauge lots (VDwL), and deviation symbols (∆Dwmp, ∆Lw). The measuring zone length (L) is defined and should be agreed between supplier and customer.
- Tolerances and grades: Diameter, length and form tolerances are tabulated per needle‑roller grade (e.g., G2, G3, G5). Length tolerances follow tolerance class h13 (ISO 286‑2). Diameter tolerances and outside‑diameter surface roughness are specified per grade.
- Local variation limits: Limits on maximum single‑diameter deviation along the roller length are specified: ≤ 0.5 µm (G2), ≤ 0.8 µm (G3), ≤ 1 µm (G5).
- Chamfer and end profile limits: Chamfer dimension limits for flat end rollers and permissible end‑profile envelopes for rounded ends are provided in tables.
- Preferred nominal sizes: A table of preferred nominal diameters and lengths is included; the 2018 edition added sizes such as D = 4.5 mm and 5.5 mm and L = 31.8 mm and 37.8 mm.
Practical applications and users
ISO 3096:2018 is used by:
- Bearing manufacturers and rolling‑element producers to specify and control production quality of needle rollers.
- Design engineers specifying needle‑roller bearings in transmissions, automotive components, gearboxes, pumps and industrial machinery.
- Quality and metrology teams implementing inspection procedures, acceptance sampling and supplier audits.
- Purchasing and procurement for contract specifications and supplier quality agreements.
Practical benefits include consistent interchangeability, clear measurement definitions, reduced ambiguity in drawings/specifications and improved control of functional performance where precise rolling‑element geometry is critical.
Related standards
Keywords: ISO 3096:2018, needle rollers, rolling bearings, geometrical product specifications, GPS, tolerances, diameter, length, needle‑roller grades.
