IEC 60068-2-30:2025 PDF

Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic (12 h + 12 h cycle)

Название (английский):

IEC 60068-2-30:2025

Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic (12 h + 12 h cycle)

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 24
Дата публикации:: 7 августа 2025 г.
Издание:: IEC IS 60068 edition 4 version 1
ICS:: 19.040

Тип поставки:

Full version360 €Read online 24h10 €Read online 72h15 €

Язык документа:

ruen

Срок поставки:4 раб. дн. (перевод)

Цена:360 €

Описание (английский):

IEC 60068-2-30:2025 specifies a test procedure to determine the suitability of components, equipment, or other articles for use, transportation, and storage under conditions of high humidity combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen. This test method can also be used to validate the packaging of specimen for transportation and storage. This fourth edition cancels and replaces the third edition published in 2005. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) revision of the requirements for the test chamber; b) change of the temperature tolerances of the test to limits; c) updating of the figures for clarification purposes; d) revision of the limits of the temperature and relative humidity during conditioning; e) revision of the intermediate measurements; f) revision of standardized requirements for the test report.

Технические детали

Технический комитет: TC 104 - Environmental conditions, classification and methods of test
SKU: IEC 60068-2-30:2025

Abstract

Overview

IEC 60068-2-30:2025 - "Environmental testing - Test Db: Damp heat, cyclic (12 h + 12 h cycle)" is the 4th edition (2025) international standard that defines a cyclic damp‑heat test procedure to assess the suitability of components, equipment and other articles for use, transportation and storage when exposed to high humidity combined with cyclic temperature changes that generally produce surface condensation. The procedure also supports packaging validation for transport and storage. This edition updates chamber requirements, temperature tolerances, conditioning limits, intermediate measurements and standardized test‑report content.

Key topics and technical requirements

Test purpose: Determine resistance to humid, cyclic thermal conditions that produce condensation on specimen surfaces.
Cycle format: 12 h + 12 h cyclic damp‑heat sequence (two variants differ in the cooling period).
Severities (Methods I–IV): Combination of variant, high conditioning temperature and number of cycles defines severity. Typical ranges from the standard:
- Variant 1: High conditioning 38 °C–42 °C (Methods I, III - cycles 2, 6, 12, 21, 56)
- Variant 1: High conditioning 53 °C–57 °C (Methods II, IV - cycles 1, 2, 6)
Test chamber requirements: Ability to vary temperature cyclically (including 22 °C–28 °C low range), control relative humidity to Variant 1 or 2 limits, ensure uniform conditions, avoid radiant heating of specimens, remote humidification (no direct droplets), continuous drainage and water quality per IEC 60068-2-67.
Procedure elements: Initial measurements, preconditioning, the cyclic test, intermediate measurements, recovery, final measurements and required content for the test report. The standard generally excludes continuously energized specimens (except in exceptional cases).
Documentation changes: Clearer figures, revised tolerances now expressed as limits, and updated reporting requirements.

Practical applications

Qualification and reliability testing of electronic components, assemblies and equipment for humid environments.
Validation of packaging for transportation and storage under humid/condensing conditions.
Environmental stress screening in industries such as consumer electronics, industrial controls, automotive, aerospace and telecommunications (where humidity and condensation can cause corrosion, short circuits or performance degradation).

Who should use this standard

Environmental test labs and chamber manufacturers
Reliability and qualification engineers
Design and test engineers for electronic hardware and packaged goods
Quality assurance and compliance teams preparing test reports and product specifications

Related standards

IEC 60068-1 - Environmental testing: General and guidance
IEC 60068-2-67 - Damp heat, steady state (water quality/humidification references)

Keywords: IEC 60068-2-30, damp heat cyclic, environmental testing, humidity testing, temperature cycling, test Db, condensation testing, packaging validation, test chamber requirements.

Overview

Key topics and technical requirements

Test purpose: Determine resistance to humid, cyclic thermal conditions that produce condensation on specimen surfaces.
Cycle format: 12 h + 12 h cyclic damp‑heat sequence (two variants differ in the cooling period).
Severities (Methods I–IV): Combination of variant, high conditioning temperature and number of cycles defines severity. Typical ranges from the standard:
- Variant 1: High conditioning 38 °C–42 °C (Methods I, III - cycles 2, 6, 12, 21, 56)
- Variant 1: High conditioning 53 °C–57 °C (Methods II, IV - cycles 1, 2, 6)
Test chamber requirements: Ability to vary temperature cyclically (including 22 °C–28 °C low range), control relative humidity to Variant 1 or 2 limits, ensure uniform conditions, avoid radiant heating of specimens, remote humidification (no direct droplets), continuous drainage and water quality per IEC 60068-2-67.
Procedure elements: Initial measurements, preconditioning, the cyclic test, intermediate measurements, recovery, final measurements and required content for the test report. The standard generally excludes continuously energized specimens (except in exceptional cases).
Documentation changes: Clearer figures, revised tolerances now expressed as limits, and updated reporting requirements.

Practical applications

Qualification and reliability testing of electronic components, assemblies and equipment for humid environments.
Validation of packaging for transportation and storage under humid/condensing conditions.
Environmental stress screening in industries such as consumer electronics, industrial controls, automotive, aerospace and telecommunications (where humidity and condensation can cause corrosion, short circuits or performance degradation).

Who should use this standard

Environmental test labs and chamber manufacturers
Reliability and qualification engineers
Design and test engineers for electronic hardware and packaged goods
Quality assurance and compliance teams preparing test reports and product specifications

Related standards

IEC 60068-1 - Environmental testing: General and guidance
IEC 60068-2-67 - Damp heat, steady state (water quality/humidification references)

Keywords: IEC 60068-2-30, damp heat cyclic, environmental testing, humidity testing, temperature cycling, test Db, condensation testing, packaging validation, test chamber requirements.

IEC 60068-2-30:2025 PDF

Технические детали

Abstract

Overview

Key topics and technical requirements

Practical applications

Who should use this standard

Related standards

Похожие стандарты

Abstract

Overview

Key topics and technical requirements

Practical applications

Who should use this standard

Related standards

Похожие стандарты

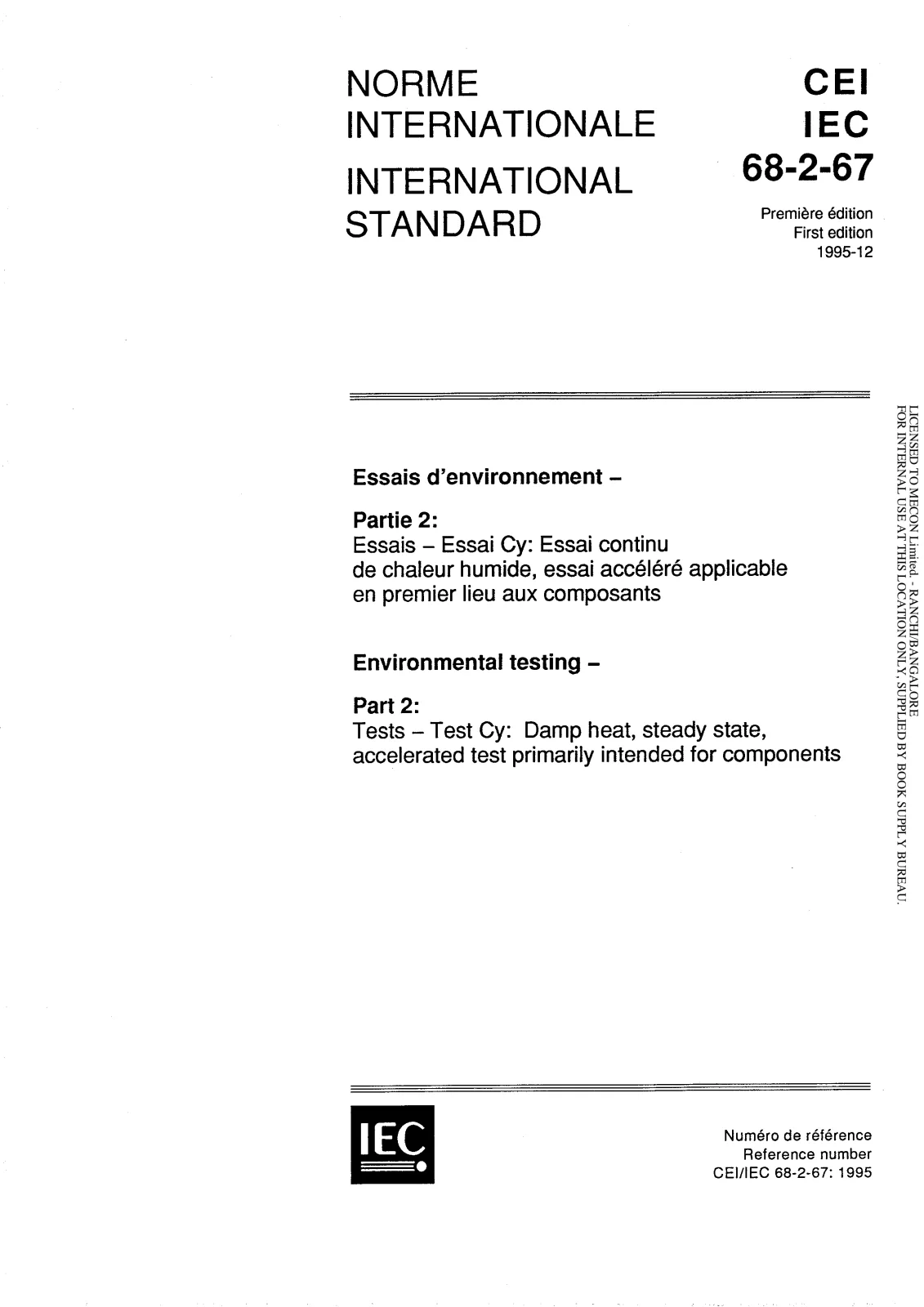

Environmental testing - Part 2-67: Tests - Test Cy: Damp heat, steady state, accelerated test primarily inten…
