Overview
IEC 61084-2-4:2017 is an internationally recognized standard published by the International Electrotechnical Commission (IEC). It outlines the specific requirements and testing methods for cable trunking systems (CTS) and cable ducting systems (CDS), focusing particularly on service poles and service posts. These systems are designed for the accommodation and, where necessary, the electrical protection and separation of insulated conductors, cables, and other electrical equipment in electrical and/or communication system installations. The standard applies to systems operating at a maximum of 1,000 V AC and 1,500 V DC.
Service poles and service posts covered by this standard are intended for installation in free space, typically making contact with the mounting surface at one or two ends. They can be fixed, placed on the floor with a weighted base, or connected to a mounting surface with a flexible component. This edition supersedes the previous 1996 version and introduces significant updates in classification, construction, and mechanical and electrical properties.
Key Topics
- Scope and Limitations: Applies to cable trunking and ducting systems for electrical and communication installations. Excludes conduit systems, cable trays, ladders, and similar equipment covered by other standards.
- Classification Updates: Enhanced categorization based on floor treatment, resistance to vertical loads, and optional resistance to large surface area loads.
- Construction Requirements:
- Addressing sharp edges and means for protective separation.
- Requirements for product stability, water ingress protection for wet-treated floors, and strain relief for likely-to-be-moved units.
- Mechanical and Electrical Properties: Details impact resistance, load-bearing capabilities, and general durability criteria for service poles and posts.
- Testing Methods: Specifies type tests for compliance, including specific impact, vertical load, and water ingress tests tailored for the product type and intended environment.
Applications
Service poles and service posts designed according to IEC 61084-2-4 are widely used in:
- Commercial buildings: For structured and safe cable distribution in open-plan offices, conference rooms, and collaborative spaces where flexible access to power and data is required.
- Educational institutions: In classrooms and laboratories where freestanding or semi-mobile access to electrical and communication outlets is needed.
- Healthcare environments: Where the safe, reliable separation and accessibility of cables are critical.
- Exhibition halls and retail spaces: For temporary or reconfigurable installations needing compliant, safe cable management.
These products can be integrated within broader CTS or CDS systems mounted on floors, walls, or ceilings, while maintaining compliance with relevant parts of the IEC 61084 series. Depending on their design, service poles and service posts may provide protection against mechanical stress, water ingress in wet cleaning scenarios, and ensure safe separation of electrical conductors.
Related Standards
- IEC 61084-1:2017: General requirements for cable trunking and cable ducting systems.
- IEC 61084-2-1:2017: Particular requirements for systems intended for wall and ceiling mounting.
- IEC 61084-2-2:2017: Particular requirements for systems intended for mounting underfloor, flushfloor, or on-floor.
- IEC 60228:2004: Conductors of insulated cables.

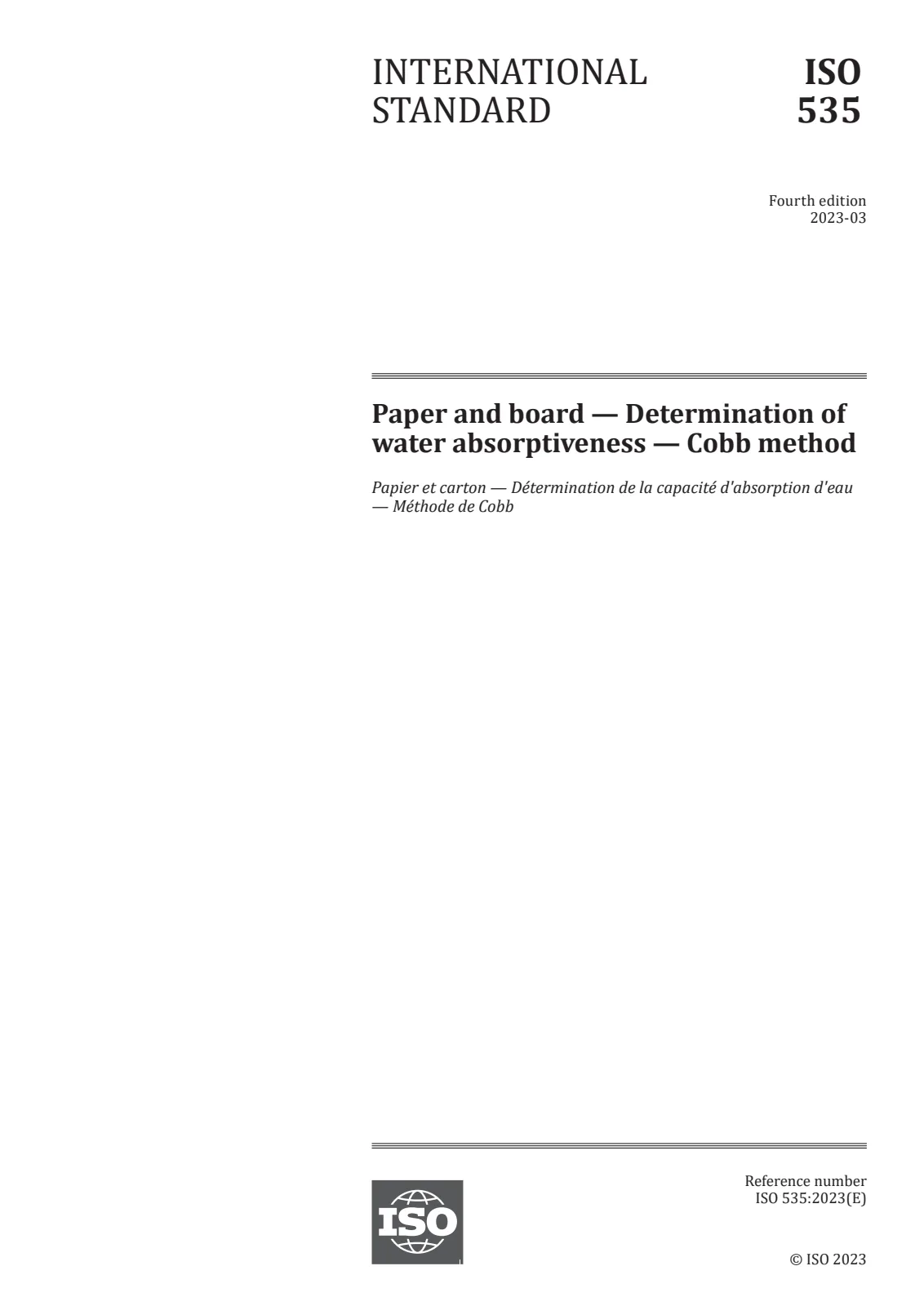

- ISO 535:2023: Determination of water absorptiveness.
- ISO 536:2019: Determination of grammage for paper and board relevant to testing materials.
- IEC 60068-2-75:2014: Hammer test for mechanical strength assessment.
These related IEC and ISO standards provide a comprehensive framework for the testing, classification, and safe installation of cable trunking and ducting systems, ensuring safety and reliability in a range of building and infrastructure environments.
IEC 61084-2-4:2017 is essential for manufacturers, specifiers, and installers seeking compliance, enhanced safety, and best practice cable management solutions. Adopting this standard ensures reliable and flexible infrastructure for both power and data distribution in modern electrical installations.
