Overview

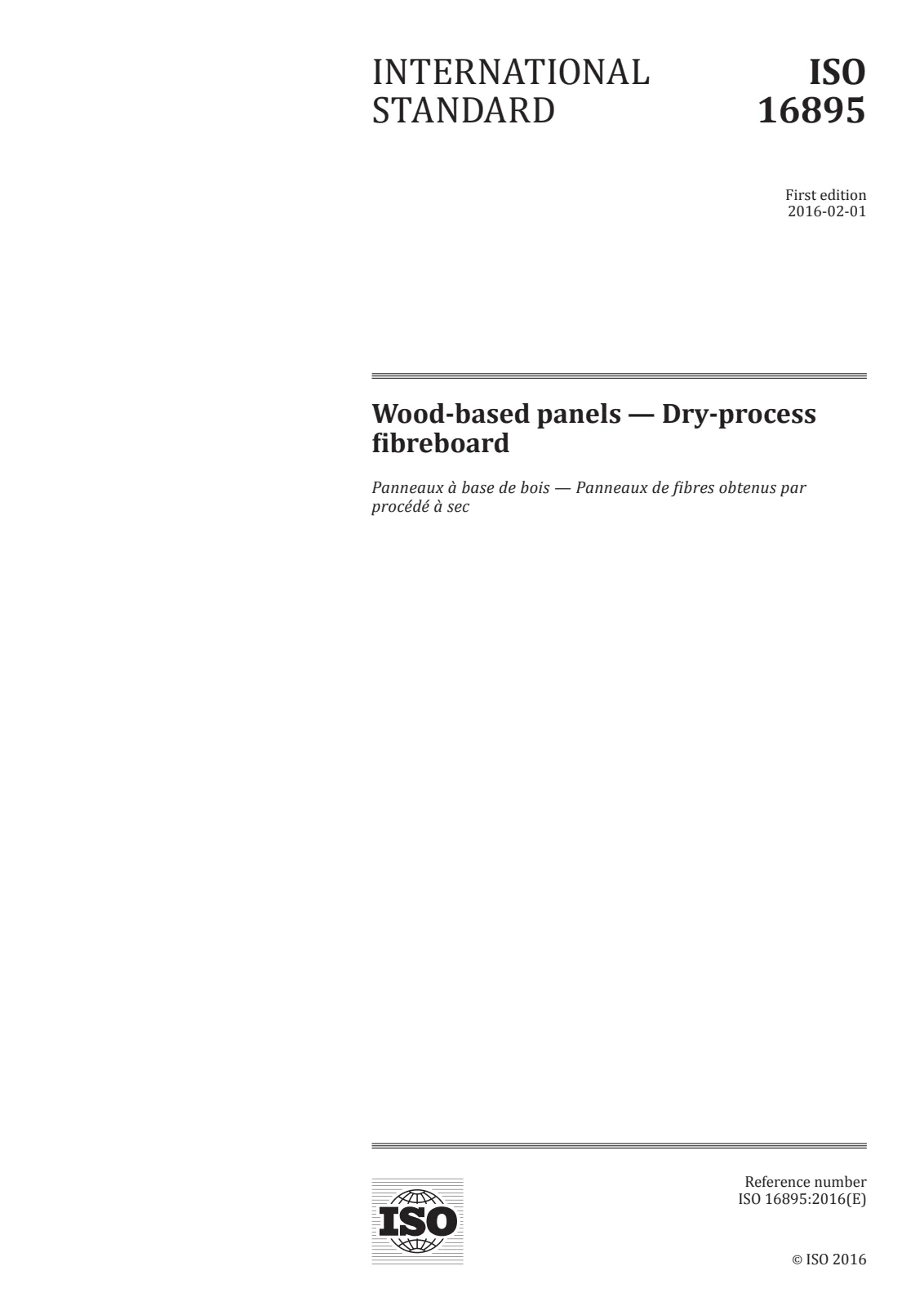

ISO 16895:2016 - Wood-based panels - Dry-process fibreboard defines classification, testing and manufacturing property requirements for dry-process fibreboard. It covers four density types (Ultra-low UDF, Low LDF, Medium MDF, and High HDF), four product grades (GP, FN, BL, LB) and four service conditions (REG, MR1, MR2, HMR). The standard sets classification matrices, mandatory tests and thickness ranges for uncoated fibreboard and provides the property limits used to assign product type and grade. NOTE: wet-process fibreboards are outside the scope. Values in ISO 16895:2016 are for classification and quality-control purposes, not for structural design calculations.
Key topics and technical requirements
- Classification by density and grade: UDF, LDF, MDF, HDF with grade designations for intended use (general purpose, furniture, building, load-bearing).
- Service conditions: Definitions for normal (REG), temperate humid (MR1), high humid (MR2) and high-moisture resistant (HMR) applications.
- Mandatory and optional tests: Specifies which properties are required for each grade/type and service condition (e.g., density, dimensional stability, surface soundness, tensile strength perpendicular to plane).
- Thickness ranges: Acceptable thickness bands for each fibreboard type to guide product specification and production control.
- Expression of specification limits: How to set lower/upper specification limits, and statistical percentiles (5th/95th) for lot evaluation.
- Formaldehyde and moisture requirements: Requires compliance with established test methods for formaldehyde emission and moisture resistance; values are classification-related, not design parameters.
- Marking and coding: Guidance for product designation and marking to indicate type, grade and service class.
Practical applications - who uses ISO 16895:2016
- Manufacturers - to classify products, set production tolerances, define thickness ranges and prepare internal QC/testing schedules.
- Quality and compliance labs - to perform mandatory tests and report conformity to grade/service classes.
- Specifiers, architects and product purchasers - to select appropriate uncoated fibreboard (MDF/HDF/LDF/UDF) for intended service conditions.
- Regulators and certification bodies - for defining product labelling and market surveillance criteria.
- R&D and product development teams - to benchmark new dry-process fibreboard products.
Related standards (selection)
ISO 16895 references and aligns with several test standards, for example:
Keywords: ISO 16895:2016, dry-process fibreboard, MDF, HDF, LDF, UDF, wood-based panels, fibreboard classification, formaldehyde emission, moisture resistance, thickness ranges, manufacturing property requirements.
